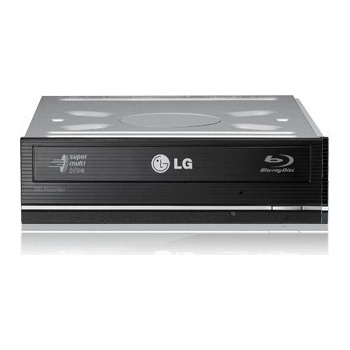

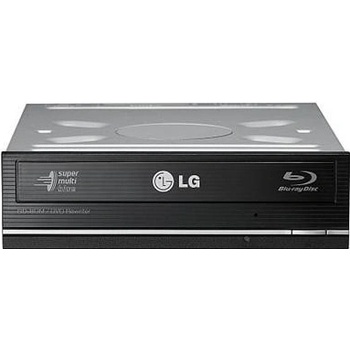

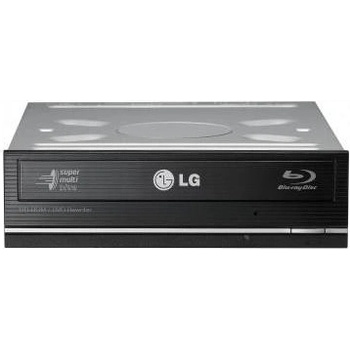

LG CH10LS

Blu-ray™ Disc Combo Internal SATA 10x Super Multi Blue LightScribe

CH10LS20

The CH10LS20 is LG’s internal dual format high definition drive that has the capability to read and play different Blu-ray formats. The CH10LS20 also reads and writes in three types of DVD formats in one convenient package – DVD+R, DVD-R and DVD-RAM. LightScribe gives you the added feature of creating customized labels that are etched onto a special coated LightScribe disc.Go Blu with the CH10LS20 by LG.

THE SUPER MULTI BLUE ADVANTAGE

Multiple Compatibility

In addition to read and access Blu-ray formats, the CH10LS20

Super Multi optical drive can read and write three types of

DVD in one convenient package: 1. DVD+R 2. RW DVD-R 3. RW DVD-RAM

This gives you the option to choose the media best suited for each task.

Serial ATA Techonology

Serial ATA is a 1.5Gbps evolutionary replacement for the

Parallel ATA physical storage interface used to connect storage devices, such as hard disks, DVD and CD rewriters to the PC motherboard. Serial ATA is scalable, enables design of smaller PCs, and will allow future enhancements to the computing platform.

LightScribe - Direct Disc Labeling

LightScribe gives you the ability to create customized labels that are etched directly onto a special coated LightScribe disc (sold separately).

TECHNICAL SPECIFICATIONS

TYPE SuperMulti Blue Internal SATA 10x Blu-ray Combo Drive

TRANSFER RATES -WRITE DVD-R 2x, 4x CLV, 8x ZCLV, 8x, 12x

PCAV, 16x CAV

DVD-R DL 2x, 4x CLV, 8x PCAV

DVD-RW 1x, 2x, 4x, 6x CLV

DVD-RAM 2x, 3x CLV, 5x, 12x PCAV

DVD+R 2.4x, 4x CLV, 8x ZCLV, 8x, 12x

PCAV, 16x CAV

DVD+R DL 2.4x, 4x CLV, 8x PCAV

DVD+RW 2.4x, 4x, 6x CLV, 8x ZCLV

CD-R 8x, 16x CLV, 24x, 32x, 40x PCAV, 48x CAV

CD-RW 4x, 10x, 16x CLV, 24x ZCLV

TRANSFER RATES - READ

BD-ROM(SL/DL) 10x / 8x CAV

BD-R (SL L to H) 6x CAV

BD-R (SL/DL) 10x / 8x CAV

BD-RE (SL/DL) 8x / 6x CAV

BDMV(AACS Compliant Disc)4.8x CAV

DVD-ROM(SL/DL) 16x / 12x CAV

DVD-R (SL/DL) 16x / 12x CAV

DVD-RW 12x CAV

DVD+R (SL/DL) 16x / 12x CAV

DVD+RW(SL) 12x CAV

DVD-RAM 2x, 3x CLV, 5x, 12x PCAV

DVD-Video (CSS Compliant Disc) 12x / 8x CAV(SL/DL) (SL/DL)

CD-R/RW/ROM 48x / 40x / 48x

CAVCD-DA (DAE) 40x CAV 80mm CD 16x CAV

ACCESS TIME

BD-ROM 180ms typ.

DVD-ROM 160ms typ

DVD-RAM 180ms typ.

CD-ROM 150ms typ.

SUSTAINED TRANSFER RATE

BD-ROM 359.65Mbits/s (10x) max.

DVD-ROM 22.16Mbits/s (16x)max.

CD ROM 7,200 kB/s (48x) max.

BURST TRANSFER RATE 1.5Gbps bits/s (10b side) 1.2Gbps bits/s (8b side)

BUFFER SIZE 4MB Buffer Under-run prevention function embedded

HOST INTERFACE

Serial ATA bus inferface (1.1a)

X3T13 ATA/ATAPI7/1532D

INF-8090i Ver.6.1

INCITS xxx T10/1675D Revision 4

LIGHTSCRIBE LABEL PRINTING

Pixel Resolution 600 [DPI]

Track Resolution 860 [TPI]

Linear Velocity 0.325 [m/sec]

Laser Power 40 [mW] as Objective emission light

Color Mono, Color BG

SECURDISC Media:

CD-R, CD-RW, DVD+R,DVD-R,DVD+RW,DVD-RW,

DVD+R DL,DVD-R Dual, DVD-RAM

Password Protection

Digital Signature

Data Integrity check

Data Reliability (Not 100%Proof)

Copy Protection (PDF file only , except CD-R, CD-RWmedia)

Only use Bundle Tool Software (Ref.www.securdisc.net)

OPERATINGSYSTEMSWindows 7, Windows Vista™, Windows XP

COMPLIANCE RoHS

DIMENSIONS (WxHxD) External Dimensions 5.7" x 1.6" x 6.8" (146 x 41.3 x 172 mm)

Front Bezel 5.8" x 1.7" x 0.2" (148 x 42 x 5 mm)

WEIGHT 1.8 lbs (800g)
